Datasheet

DS-2DE7A232IW-AEB

2 MP 32× IR Network Speed Dome

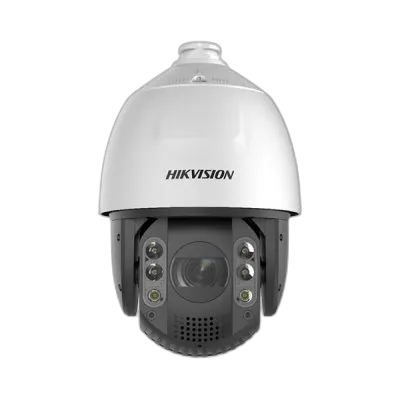

Hikvision DS-2DE7A232IW-AEB(T5) 2 MP 32× IR Network
Speed Dome adopts 1/2.8″ progressive scan CMOS chip.
With the 32× optical zoom lens, the camera offers more
details over expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as the rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.
 1/2.8″ progressive scan CMOS
 High quality imaging with 2 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 Audio visual alarm: The white flashing light and audible
warning can be triggered by certain events
 32× optical zoom and 16× digital zoom provide close up
views over expansive areas
 Expansive night view with up to 200 m IR distance
 Focuses on human and vehicle targets classification based
on deep learning
 Face capture: Up to 5 faces captured at the same time

 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.
DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 2200 m (7217.8 ft) 873 m (2864.2 ft) 440 m (1443.6 ft) 220 m (721.8 ft)
 Specification
Camera
Image Sensor 1/2.8″ progressive scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 32x optical, 16x digital
Lens
Focal Length 4.8 mm to 153 mm
Zoom Speed Approx. 4.8 s
FOV
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
Aperture Max. F1.6
Focus Auto, semi-auto, manual
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 200 m
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
Park Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps
(AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets
API
Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings,
security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
Defog Digital defog
Image Stabilization EIS
Regional Exposure Yes
Regional Focus Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser

Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR > 52 dB
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 2 inputs, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Built-in Speaker 1 built-in speaker with effective distance reaching max. 30 meters
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection, audio exception
detection
Smart Tracking Manual tracking, auto-tracking
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, audible warning, white light flashing, and PTZ actions (such
as preset, patrol scan, pattern scan)
Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best
face picture of the face
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
Hi-PoE
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes
Material ADC12
Dimension Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
Weight Approx. 5 kg (11.03 lb.)
Approval
Protection
IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection,
surge protection and voltage transient protection
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)

Safety
UL (UL 62368-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.
 Available Model
DS-2DE7A232IW-AEB(T5)

 Dimension
 Accessory
 Included
DS-1602ZJ
 Optional
DS-1681ZJ DS-1667ZJ DS-1660ZJ
DS-1604ZJ-BOXPOLE
DS-1661ZJ

DS-1663ZJ DS-1673ZJ DS-1619ZJ DS-1682ZJ DS-1604ZJ
DS-1662ZJ
DS-1604ZJ-BOXCORNER
DS-1604ZJ-box
*DS-1673ZJ should be used with DS-1661ZJ or DS-1662ZJ.

Nhận xét qua về camera DS-2DE7A232IW-AEB

DS-2DE7A232IW-AEB là một sản phẩm camera giám sát cao cấp của hãng Hikvision. Đây là một chiếc camera PTZ (Pan-Tilt-Zoom) đa chức năng, được trang bị độ phân giải cao, khả năng quan sát ngày và đêm, tính năng nhận diện và theo dõi chuyển động thông minh.

Với độ phân giải 2MP và zoom quang học 32x, DS-2DE7A232IW-AEB cho phép bạn quay và zoom để thu phóng hình ảnh với chi tiết tối đa. Thiết bị này cũng được trang bị các tính năng an ninh thông minh như phát hiện xâm nhập, phát hiện vượt hàng rào ảo, phát hiện vật thể bỏ quên, v.v. để giúp bạn giám sát và bảo vệ an ninh khu vực một cách hiệu quả.

Ngoài ra, DS-2DE7A232IW-AEB còn được trang bị tính năng đèn LED hồng ngoại cho chế độ ban đêm, giúp quan sát được rõ hơn trong môi trường ánh sáng yếu hoặc tối. Thiết bị cũng được trang bị tính năng chống va đập, chống thấm nước và bụi IP66, v.v. để đảm bảo hoạt động ổn định trong mọi điều kiện thời tiết.

Với khả năng xoay 360 độ, nghiêng lên xuống 90 độ và không gian quan sát rộng, DS-2DE7A232IW-AEB có thể giám sát và quản lý khu vực lớn một cách hoàn hảo. Bạn có thể điều khiển thiết bị từ xa thông qua ứng dụng di động hoặc phần mềm máy tính, dễ dàng quan sát và giám sát mọi hoạt động xảy ra trong khu vực được giám sát.

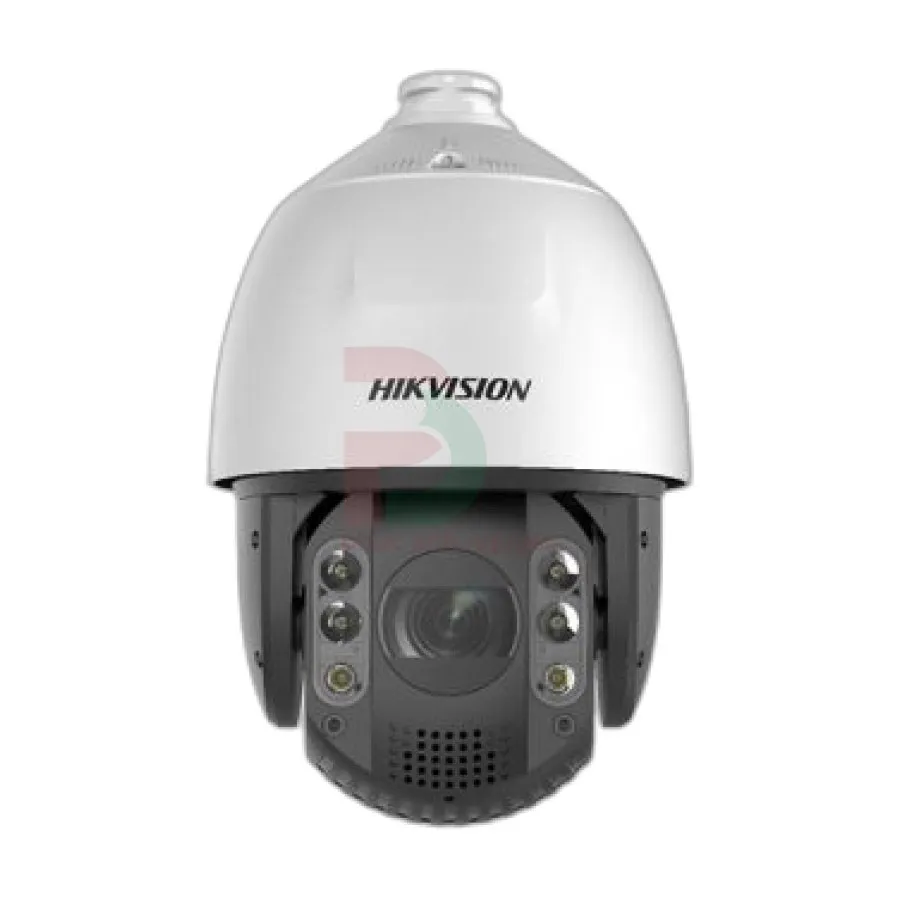

Hình ảnh sản phẩm Camera IP Speed Dome Hikvision DS-2DE7A232IW-AEB 2MP
